Blackmagic Design ATEM 2 M/E Broadcast Studio 4K Switcher

Video

The ATEM 2 M/E Broadcast Studio 4K switcher supports 20 UHD 4K (3840 x 2160) video sources at up to 60p via its 12G-SDI inputs on standard BNC connectors. In addition, the switcher can be configured to accept 720p, 1080i, and 1080p signals for use in HD production. Internal frame synchronizers on all 20 inputs ensure seamless switching, even at 60 fps

Note: All inputs must be set to the same resolution and frame rate

The switcher features 20 single-link 12G-SDI inputs, each supporting 2 channels of embedded audio. This allows you to connect not only UHD 4K cameras and video players, but also 3G- and HD-SDI camera and device as well

Internal frame synchronization is provided so that you will not need genlock. However, there is a tri-level sync port in case you want to sync to an external source such as a house clock

Audio

The switcher includes a built-in audio mixer for mixing and balancing embedded audio from all 20 video inputs as well as the two audio inputs, each with two-channel support. This lets you manually mix sources or you can set mixer inputs to “audio follow video” so your audio crossfades as you switch between sources.

An XLR timecode input is provided along with an output so that timecode on any material recorded via the ATEM will match that of other equipment in your production

XLR talkback in and out ports enable the ATEM operator to communicate with other crew members via a professional two-way intercom system (available separately)

Video Outputs

The switcher features three dedicated SDI program outputs for the final video, which are HD/UHD switchable. There is also one down-converted SDI program output that allows a UHD 4K feed to be simultaneously output in HD resolution

The switcher features six SDI auxiliary outputs capable of delivering the program out feed with or without the downstream keyer effects in SD, HD and Ultra HD. These can be used for monitoring, to create a “clean” feed for recording without logos or graphics, or to supply on ISO signal from a selected input to an external recorder, IMAG display, or other destination. Control of the Aux output is via the ATEM software or directly using front-panel buttons and the built-in LCD

Two independent multi-view outputs are available via an SDI output for viewing multiple input sources on a single production monitor

Keyers

The switcher features four upstream keyers and a DVE, allowing you to layer live video, title, graphics, and animation over live video. You can choose from chroma, luma, linear, and pattern keys at UHD 4K resolution with 10-bit processing

Two downstream keyers allow you to add graphics, lower thirds, titles, and logos for a polished live production

The DVE allows you to create a picture-in-picture effect

Control Interface

The switcher features backlit front panel control buttons for manual control

The switcher uses an Ethernet connection to interface with control surfaces such as the separately available ATEM 1 M/E and 2 M/E Broadcast Panels

You can also control the switcher by using the included ATEM Software Control software from a Mac or Windows computer over Ethernet. You can control all production settings of the switcher as well as directly import graphics from your computer into the switcher’s media pool

You set the format for each project you are working on, from SD to HD to UHD 4K, selecting resolution and frame rate. This is accomplished by using either the included software for Mac/PC or via the ATEM 1 M/E or ATEM 2 M/E Broadcast Panel

Using the Ethernet port on the switcher allows you to connect control surfaces directly to the switcher or you can control the switcher across a network

The switcher features a USB port that is used for software updates and to set the switcher’s chassis IP address, which can only be done by using a computer running the ATEM Switcher Utility connected to the switcher’s USB port

Rack Mount

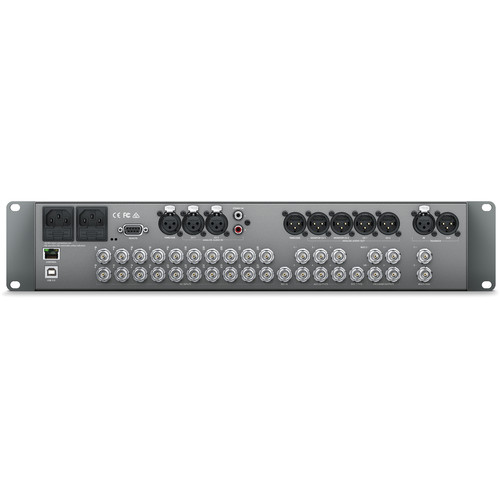

The switcher is 2RU in height and has built-in rack mount ears for mounting in a production road case or in a postproduction facility
