FEELWORLD D71
₱30,950.00

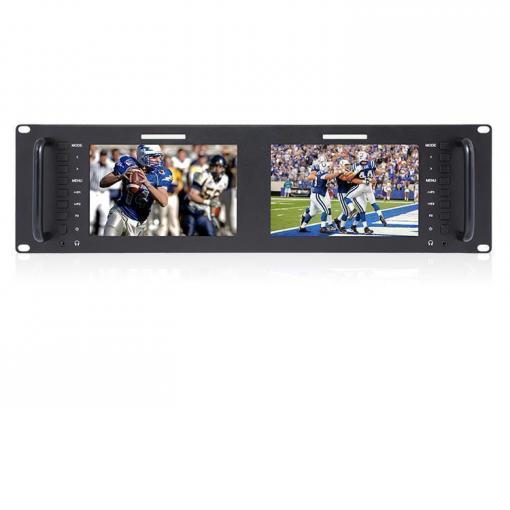

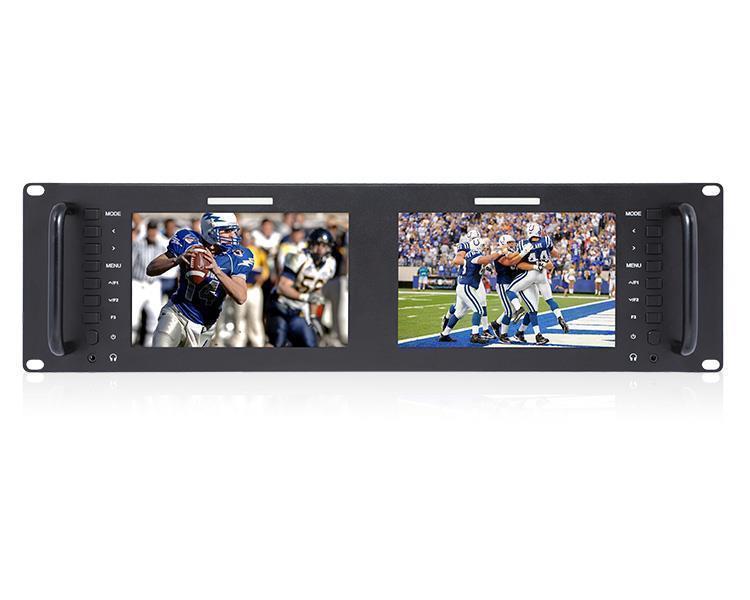

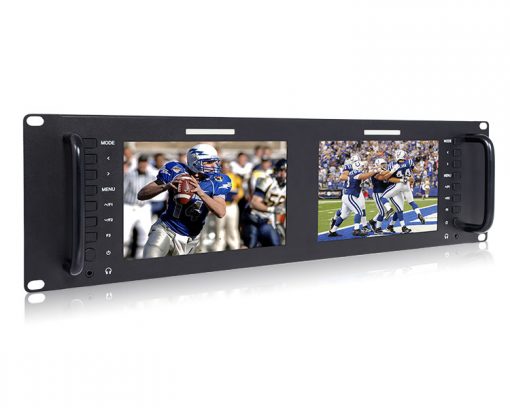

FEELWORLD D71 Dual 7″ 3RU IPS 1280×800 Broadcast LCD Rack Mount Monitor with 3G-SDI, HDMI, AV input and output
FEELWORLD D71
FEELWORLD D71 Dual 7″ 3RU IPS 1280×800 Broadcast LCD Rack Mount Monitor with 3G-SDI, HDMI, AV input and output
Find other Studio Monitor here
Introduction
Screen Size： 7"x2 IPS Resolution： 1280x800 pixels Aspect ratio： 16:10 Brightness： 400cd/m²
Input
- 3G-SDI, HDMI, Video, Audio(L/R), Ethernet
Output
- 3G-SDI, HDMI, Video, Stereo Headphone
Dual 7″ 3RU Rack Monitors
D71 are extremely thin and lightweight. 7″ 3RU Rack Monitors with dual 7” IPS 1080×800 screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.With GPIO for Software control via Ethernet connection. FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.
Enjoy Consistent Images from Any Perspective
D71 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you’ll be able to see accurate, consistent and bright images from any point of view.
Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.
Multiple Inputs and Outputs
SDI / HDMI / CVBS / Audio Each LCD of D71 monitor supports:
Input:
- 3G-SDI X 1
- HDMI X 1
- CVBS X 1
- Auido (L/R) X 2
Output:
- 3G-SDI X 1
- HDMI X 1
- CVBS X 1
- Stereo Headphone
Network Control
D71 rack mount Monitor includes a LAN port,This allows the operator to Software control via Ethernet connection (software included). The rear panel LAN 100 port connects the unit to the LAN. Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This willthen display the IP address of that unit. Simply type this IP address into the address bar of your Software. It is possible to poll your LAN for all other units connected by accessing the NETWORK tab from the Top Menu.
The user can then control multiple networked D71 monitor at once using a single Software. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.
3-color Tally Light DB-9 input signal
There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.
Stablity and Reliability
As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.
