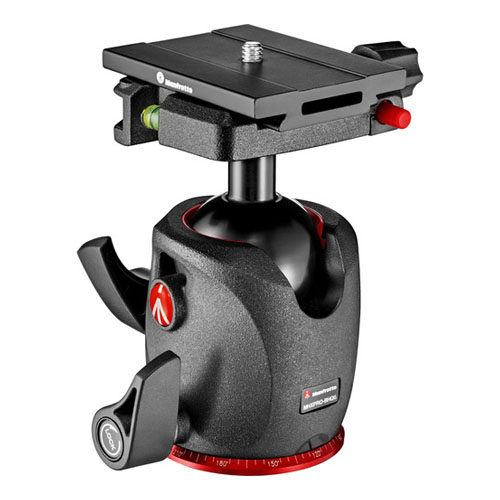

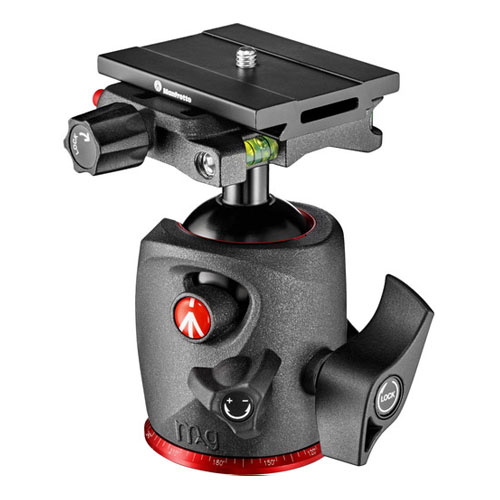

Manfrotto XPRO Magnesium Ball Head with MSQ6PL Quick Release Plate

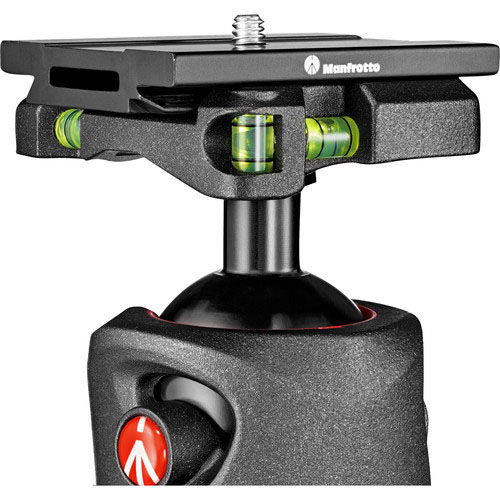

This Manfrotto XPRO Magnesium Ball Head from Manfrottofeatures an integrated Arca-type clamp and a MSQ6PL Quick Release Plate. Arca-type compatible quick release plates such as the MSQ6PL can be attached or removed from the Arca-type clamp located at the top of the ball-and-socket joint by tightening or loosening the clamp’s locking knob. Within the recessed surface between the clamp’s jaws is a retaining pin. This pin prevents an installed quick release plate from accidentally sliding off when the clamp is opened.

Find other Manfrotto tripods here

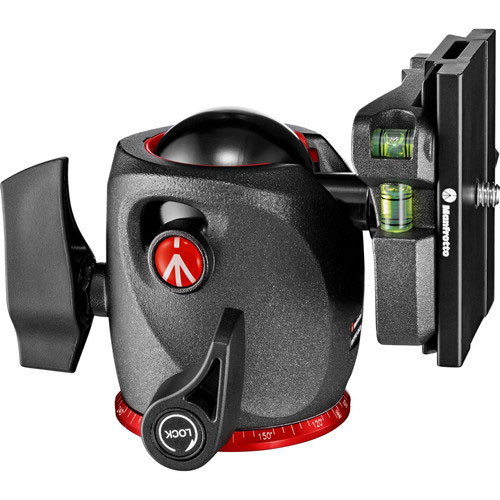

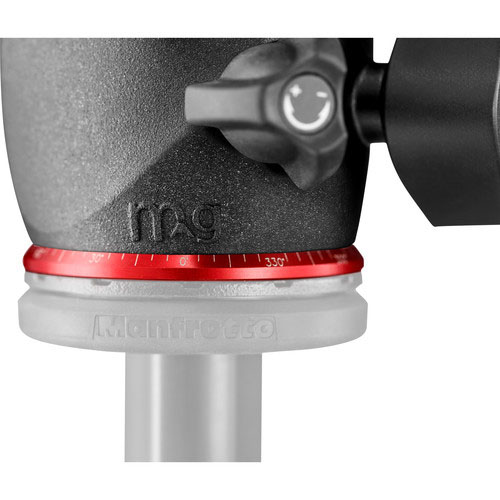

The XPRO Magnesium Ball Head with MSQ6PL Quick Release Plate has a load capacity of 22.1 lb and can be attached to tripods or other support systems that feature a 3/8″-16 mount. By loosening this XPRO Magnesium Ball Head’s primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head’s base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint’s movements.

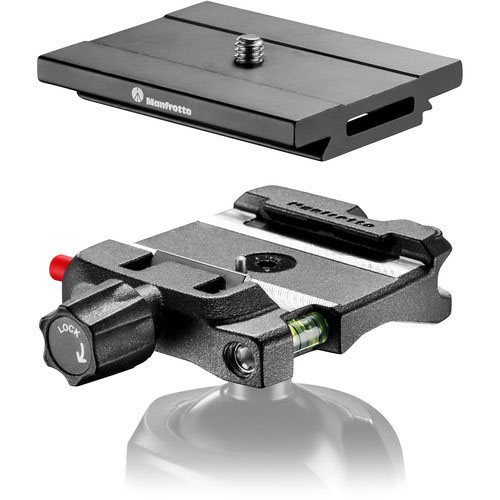

Cameras or accessories that are compatible with a 1/4″-20 mount can be connected to the MSQ6PL Quick Release Plate which measures 2.8 x 2.2 x 0.4″.
