Pilotfly H2-45 Professional Kit 3-Axis Gimbal Stabilizer & Two-Hand Holder Kit

₱68,000.00

H2 3-Axis Handheld Gimbal Stabilizer
Two-Hand Holder for H2
RM-1 Remote Control for H2
Supports Cameras up to 4.9 lb
Yaw, Roll, Tilt, and Time-Lapse Control
Ergonomic Detachable Handle
26 Hour Integrated Battery
Mount On Tripods, Sliders, Jibs, Etc.
Triple Motor Control Units
Two Integrated IMU Sensors

Categories: Gimbals, Gimbals for DSLRs, Gimbals for Mirrorless, PILOTFLY

Description
Reviews (0)

Pilotfly H2 Overview

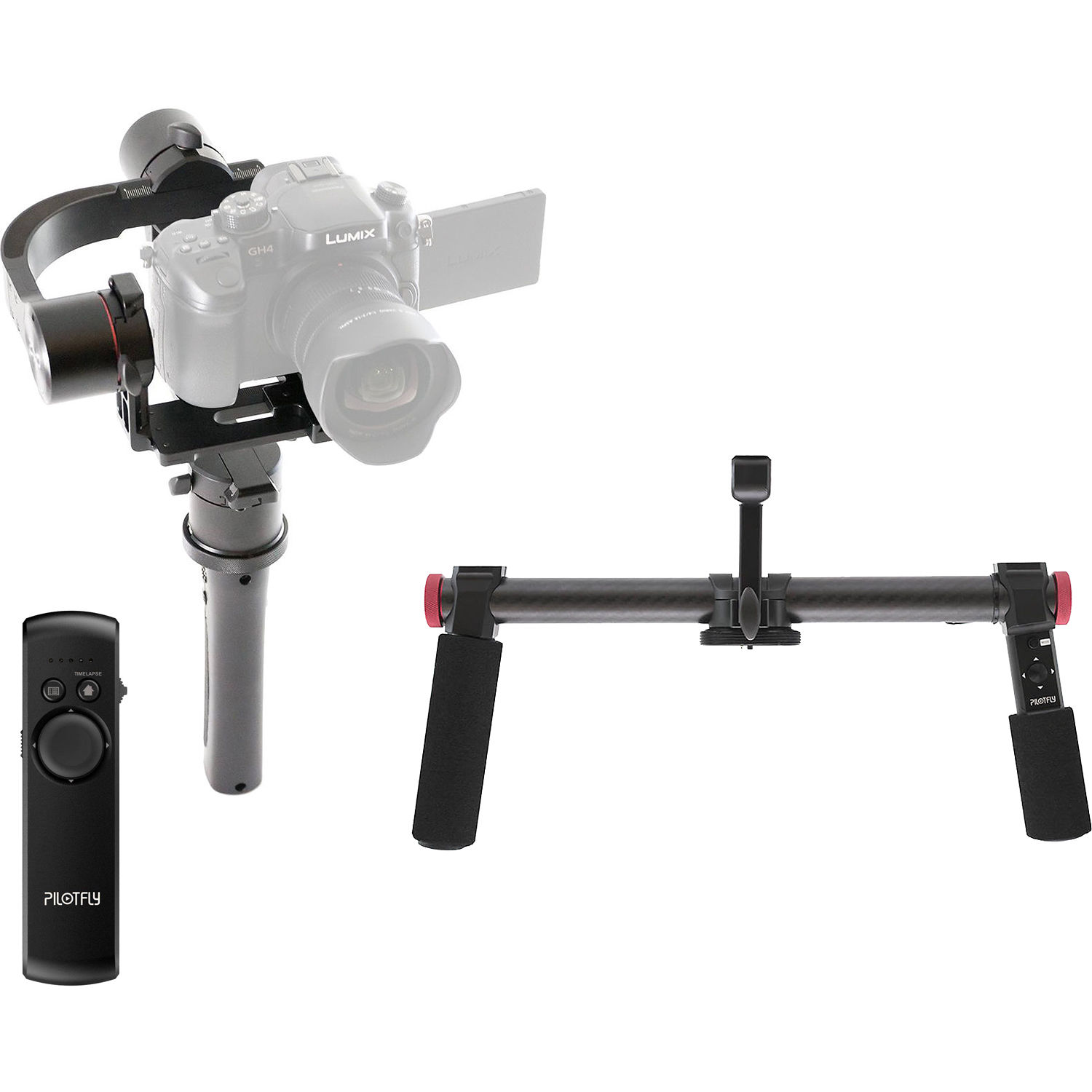

The Pilotfly H2 Professional Kit includes the H2 3-Axis Handheld Gimbal Stabilizer, Two-Hand Holder, and Tuning Stand for T1 / H2 Gimbal.

Capture stabilized handheld video footage with the H2 3-Axis Handheld Gimbal Stabilizer. It supports mirrorless and DSLR cameras weighing up to 4.9 lb and delivers 3 axes of stabilization. The handle features an ergonomic design and a four-way joystick that provides for optimal motion control. A Li-Po battery is integrated into the handle that provides an operational runtime of up to 26 hours.

The Two-Hand Holder allows two-hand control with the Pilotfly H2 and Pilotfly T1 gimbal stabilizers. Made of carbon fiber and CNC aluminum and weighing only 1 lb, the Two-Hand Holder is a lightweight addition, and it provides a 4-way joystick for better control of pitch and yaw axes. The Tuning Stand is designed for use with T1 / H2 Gimbals.

H2 3-Axis Handheld Gimbal Stabilizer
Capture stabilized handheld video footage with the H2 3-Axis Handheld Gimbal Stabilizerfrom Pilotfly. It supports mirrorless and DSLR cameras weighing up to 4.9 lb and delivers 3 axes of stabilization. The handle features an ergonomic design and a four-way joystick that provides for optimal motion control. A Li-Po battery is integrated into the handle that provides an operational runtime of up to 26 hours.

Using a 32-bit Alexmos controller with triple motor control units and two integrated IMU sensors, the H2 offers 360° of unrestricted panning, 220° of up tilt and 100° of down tilt, and 100° of left roll and 240° of right roll, all with 0.01 to 0.04° of control precision.

The camera mounting assembly of the H2 offers multiple points of adjustment to allow you to find the center of gravity for all axes. The camera adapter plate is also left/right adjustable to support different cameras. All adjustments are done without tools but rather using thumbscrews and push buttons.

The H2 also offers two 1/4″-20 threaded mounting holes on the sides (on one each side) for attaching accessories and one on the bottom for mounting on tripods, monopods, and other support devices.

The H2 also boasts superior construction, with the three axes made of CNC-machined aluminum alloy.
Key Features

Capture smooth and stable shots with DSLRs and cameras up to 4.9 lb

32-bit Alexmos controller with triple-MCUs and dual IMU sensors

High payload motors with integrated encoders

4-way joystick

360° of unrestricted panning

220° of up tilt and 100° of down tilt

100° of left roll and 240° of right roll

Control precision of 0.01 to 0.04°

Five pre-configured profiles (Follow Mode / Pitch Lock / Full Lock /Follow Roll / Home Move)

Auto-Invert mode applicable to all profiles

Adaptive PID-algorithm for preventing vibrations at big angles

ACC low-pass filter for improved stability

26 hour runtime battery with low-voltage protection

Accessory and tripod mounting threads

Tool-less adjustment at multiple points for COG

Quick-release plate included

Detachable handle

Status LED for power and battery level

Integrated Bluetooth module allows for remote control with Android app
Two-Hand Holder for H2 and T1 Gimbal Stabilzers

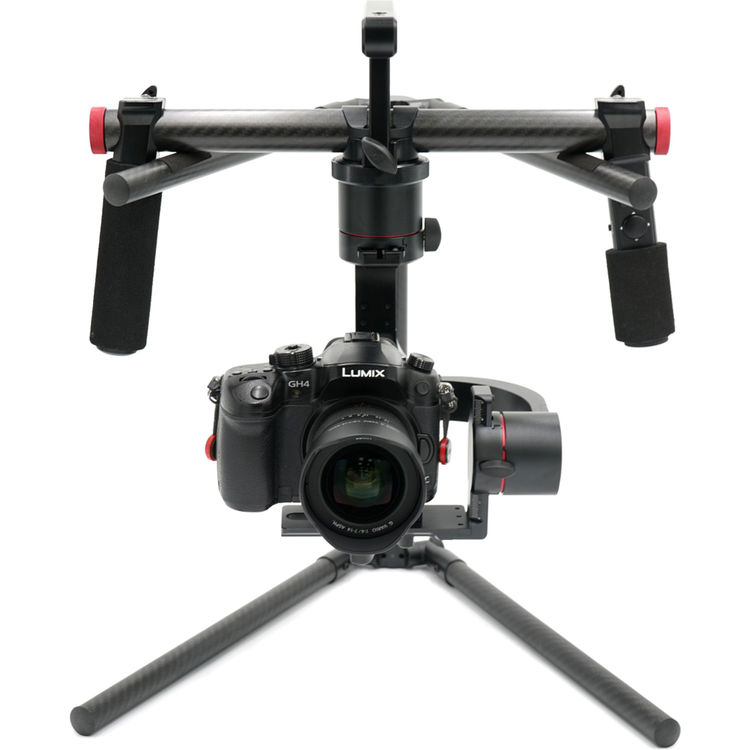

The Pilotfly Two-Hand Holder allows two-hand control with the Pilotfly H2 and Pilotfly T1 gimbal stabilizers. Made of carbon fiber and CNC aluminum and weighing only 1 lb, the Two-Hand Holder is a lightweight addition, and it provides a 4-way joystick for better control of pitch and yaw axes.

The Two-Hand Holder attaches to your gimbal quickly without any tools, and operates wirelessly over Bluetooth. It’s powered by four included batteries that insert into an integrated battery compartment, and comes with a four-bay charger for the batteries. The Two-Hand Holder also features a top handle with a 1/4″-20 threaded mounting hole where you can additionally attach a monitor or mic.
Key Features

Allows for two-hand control with the Pilotfly H2 and T1 gimbal stabilizers

4-way joystick for pitch and yaw axes

Underslung, Upright, and Briefcase modes

Mode button for selecting profiles and initializing gyro calibration

Time-lapse function

Top handle with 1/4″-20 threaded hole supporting monitors, mics, and other accessories

Toolless attachment

Operates over Bluetooth

Powered by four included batteries

Four-bay charger included

Made of lightweight carbon fiber and CNC aluminum
Tuning Stand

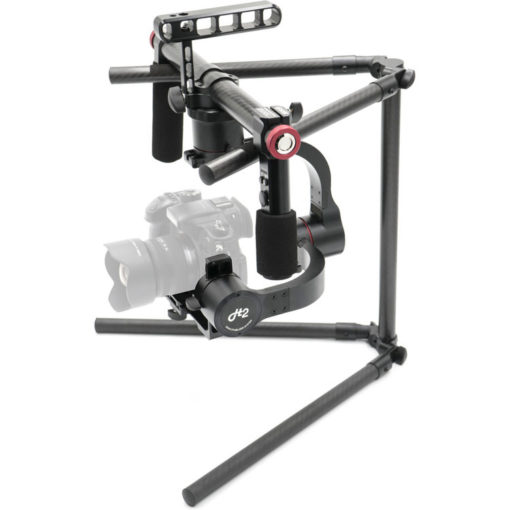

Use the Pilotfly Tuning Stand to more easily balance your T1 or H2 gimbal (in 2-handed mode). It also functions as a stand for when you’re taking a break during a shoot. The aluminum and carbon fiber design keeps the stand light yet rigid while the ability to fold the stand ensures that it’s easy to pack away for storage and transport.
