SEETEC 4K156-9HSD

SEETEC 4K156-9HSD 15.6″ 4K Broadcast Monitor with IPS UHD 3840×2160 4xHDMI Quad Split Display

Find other Studio Monitor here



Introduction

Screen Size：  15.6" IPS
Resolution：   3840×2160 pixels
Aspect ratio： 16:9
Brightness：   300cd/m²

Input

• SDI, HDMIx4, DVI, VGA, Audio(L/R)

Output

• SDI, Stereo Headphone, Speaker(built-in)

SEEETEC 4K156-9HSD is the Ultra HD broadcast monitor with 4x4K HDMI input, 3G-SDI input/ loop out for native display up to 2160p60.
You get a professional broadcast monitor that supports the latest Ultra HD 3840×2160 resolutions, bring unbeatable image clarity in cinematic display.
The machined metal design includes a built in control panel for using features such as the built in quad view, peaking filter, check field, image freeze, zoom, image flip, center markers, screen markers, pixel to pixel, color temperature and more, you can easily check focus and watch for color consistency across all of your cameras.

Extremely High Resolution

15.6 inch 3840 x 2160 resolution allows you to see every pixel in an Ultra HD image
Now you can install the perfect future proof monitoring solution because 4K156-9HSD will handle monitoring from all your SD, HD-SDI, 3G-SDI and 4K HDMI 2160P sources. The full resolution Ultra HD monitor allows you to see every single pixel in a 3840 x 2160 resolution HDMI input, even when running at a faster 60p frame rate! The fast frame rate support is perfect for fast motion such as sports, plus you get a totally future proof design!

Better Monitoring IPS 170° wider view angle, precise color restoration

SEETEC 4K156-9HSD has a wide 170º viewing angle, which means it’s easy to see, even when several crew members are watching. 4K Ultra HD LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

Front Panel Control Technical control at the touch of a button!

When you’re on location you need to be able to quickly and easily access the controls such as auxiliary functions and input selection. With 4K156-9HSD-384 that’s no longer a problem. The buttons are extremely durable, designed to last for years, and give you super fast access to all of the technical and professional broadcast controls you need during production.

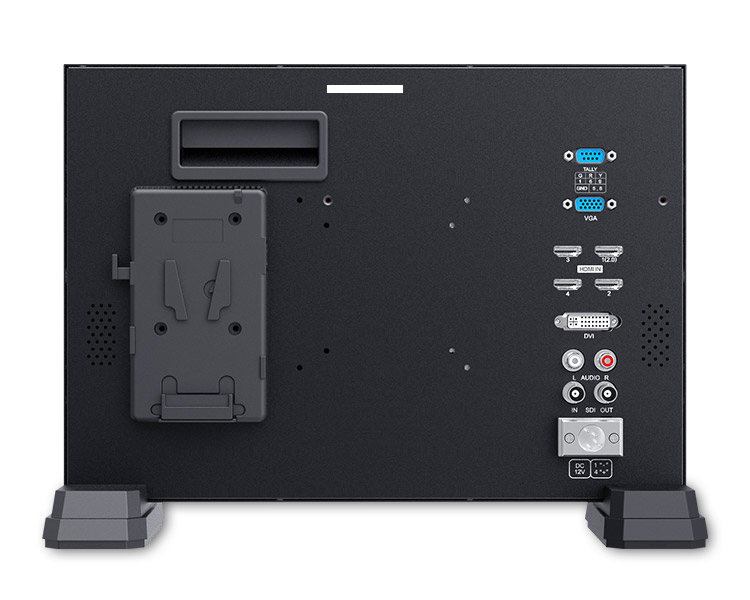

Professional Connections Connect up to 5 cameras

SEETEC 4K156-9HSD features a professional broadcast SDI monitor that also includes loads of HDMI connections! With four HDMI and one 3G-SDI inputs, you can connect up to 5 cameras, computers or other sources and work in all SD and HD formats up to 1080p60! That means you can start with affordable HDMI consumer cameras, or work with professional SDI broadcast cameras. You also get reference input, analog audio.

Built in Quad View See more video sources on a single monitor

When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. 4K156-9HSD has four 4K HDMI inputs, one SDI input and loop put, DVI, VGA, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

Built in Dual View Amazing picture in picture effects

The PIP function lets you position and realize live video, all in real time. That means you can create professional picture in picture effects by adjusting the brightness, contrast, hue, saturation, sharpness, backlight. Using a picture in picture effect to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions.

3-color Tally Light Film Crew Shooting convenient Control

4K156-9HSD monitors feature super clear LCD screens with tally so it’s the perfect solution for live broadcasts. 4K156-9HSD includes green, red and yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher’s preview output. Tally is connected via an industry standard parallel pin connector on the rear panel so you get full compatibility with switchers or automation systems.

Uninterrupted Power Plug it in or go mobile

Whether you’re working with SD, HD or Ultra HD, 4K156-9HSD is an incredibly versatile monitor packed with features that make it perfect for broadcast and post! With both XLR power, you can install it anywhere! Use external batteries on set, or plug it into standard power in your news rooms, vans, and post facilities.

SEETEC 4K156-9HSD features an elegant machined metal design that’s durable and extremely strong! Its modern design looks great in your studio and is also robust enough to be used on the road, in fly-away kits and even at live events. From its machined metal front to its fully digital backlight controls and professional broadcast connections, the 4K156-9HSD has been designed to handle the stress of professional broadcast, television, film and commercial production on the road or in your studio!

Live Production Broadcast Monitor Turn any live event into a professional HD television program!

4K156-9HSD monitors are the affordable way to create incredible HD programs immediately from live events! It’s perfect for broadcasters, professional sports, concerts, seminars and other scenes. They can meet you get perfect multi camera monitoring in any location!
