SEETEC LUT215

SEETEC LUT215 21.5 inch 3D LUT Broadcast Studio Monitor 3G-SDI 4K HDMI Full HD 1920×1080

Find other Studio Monitor here



Introduction

Screen Size：  21.5" IPS
Resolution：   1920x1080 pixels
Aspect ratio： 16:9
Brightness：   250cd/m²

Input

• 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI, DP (DisplayPort), USB

Output

• 3G-SDI, RS485, Stereo Headphone, Speaker(built-in)

Professional Monitoring Tools

SEETEC LUT215 full hd broadcast monitor with 4K HDMI for native display of up to 2160p60. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, histogram, 16-ch embedded audio meters, focus assist, false colors, over exposure, time code, picture in picture, anamorphic mode, image zoom, center marker, safety marker, ratio marker, check field, image freeze adjustable Gamma selection and more, either from the front panel or via GPI control!

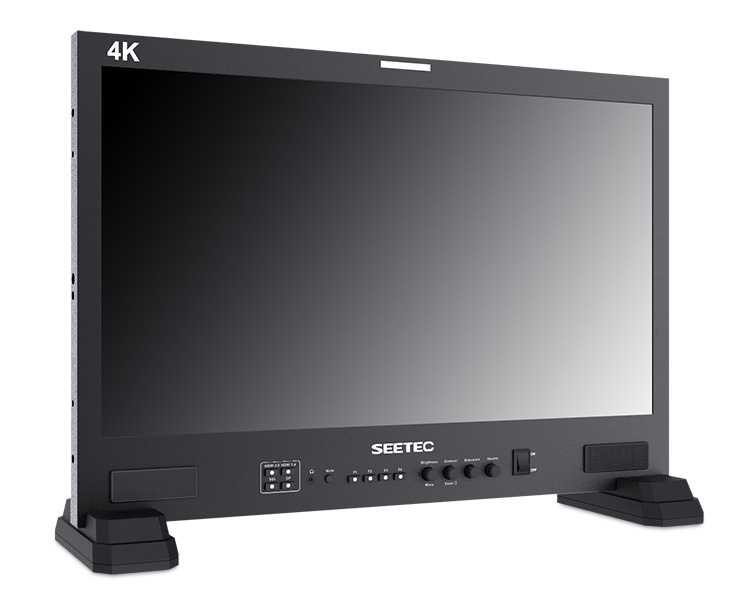

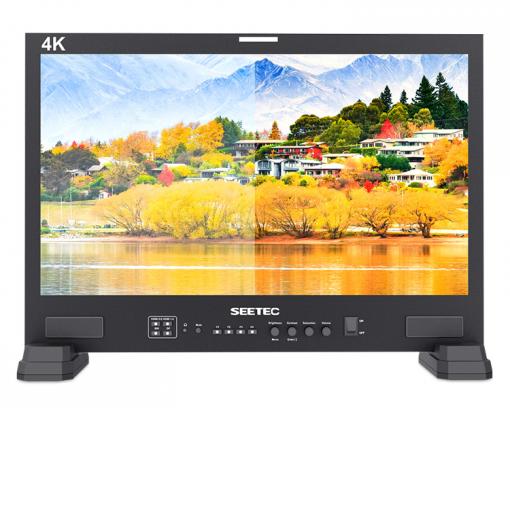

21.5” IPS LCD, Full HD Resolution

Broadcast quality, allows you to see every pixel

The SEETEC LUT215 equipped with a 21.5 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 3000:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 178° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

True Color . Professional Color Calibration

Use Rec.709 color standard

SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction

SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Professional Front Control Panel

When you are busy at the shooting scene, you need to be able to easily control the equipment, and the LUT215 can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, saturation, and volume to make it easier to shoot. And the button with the night light technology, let you know the current input signal and the shortcut keys used.

Professional Monitoring Quality

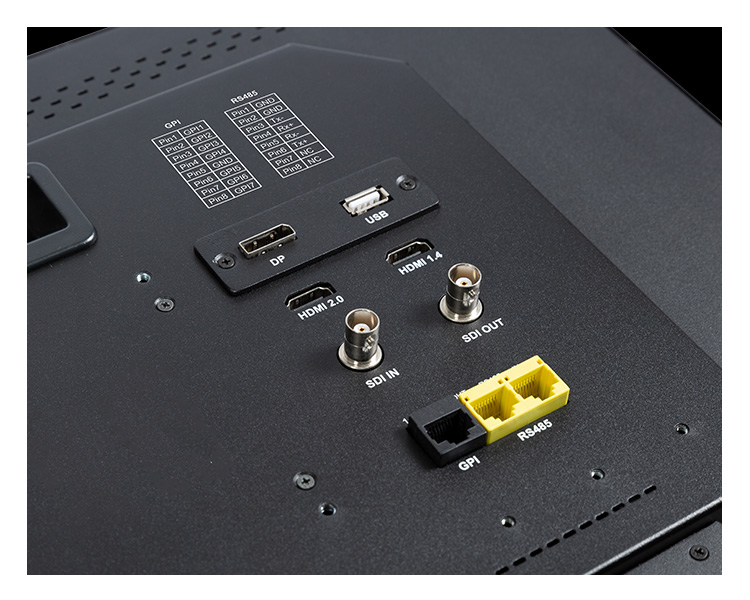

SEETEC LUT215 is an incredibly high quality monitor that’s versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor is equipped with 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI and DP interfaces, suitable for transmission of different signal formats.

4K HDMI/ DisplayPort Inputs

HDMI 2.0 & DisplayPort 1.2 support 4K 60Hz signal input.
HDMI 1.4 support 4K 30Hz signal input.

Built-in De-log 3DLUTs

User 3DLUT cube upload

The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including C-log standard, C-log full, S-log2, S-log3, BMD-4Klog.
Support user 3DLUT cube files (support 17x17x17, 33x33x33, 65x65x65) to upload by USB, which is convenient for color creation during post-production monitoring. User can store up to 16 instantly selectable 3D LUTs.

16-Channel Audio Level Meters

The monitor can de-embed audio from SDI and HDMI. Support select any 2 channels audio to output via speaker or 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display, and you can select to display only 2 channels, 4 channels, 8 channels, and full 16 channels. Under HDMI audio, only 2 channels audio displays are supported.

Multi Window Modes

PIP/ PBP Modes

The picture-in-picture function can monitor two signals at the same time, which can be displayed simultaneously for different formats, resolutions, frame rates, or even different input types for comparison. And can display a loading LUT effect at the same time. You can adjust the picture-in-picture size, horizontal and vertical position, and rotate the picture.
