SEETEC SCH SDI⇌HDMI Cross Converter

Find other Studio Monitor here

Introduction

● 1 SDI Input, 2 SDI Output, and 1 HDMI Input,1 HDMI Output
● Double Power Supply System
● Standard 1/4 Screw Threads
● Power/Input/Output Status Indicator
● Heavy Duty Metal Housing

Input

• 3G/HD/SD-SDI, HDMI

Output

• 3G/HD/SD-SDI, HDMI

SEETEC New Release Mini Converters

The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ⇌ HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.
Standard “1/4-20”screw threads for flexible installing. You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.

SDI ⇌ HDMI Cross Converter

Input: 1X HDMI；1X SDI
Output: 1X HDMI；2X SDI

Use Anywhere Mini size broadcast quality converters!

SEETEC Mini Converters are so small you can use them anywhere! Whether you’re carrying one in your laptop bag or in your outside broadcast van and road cases. They’re perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!

Enjoy Perfect Visual Experience

High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.

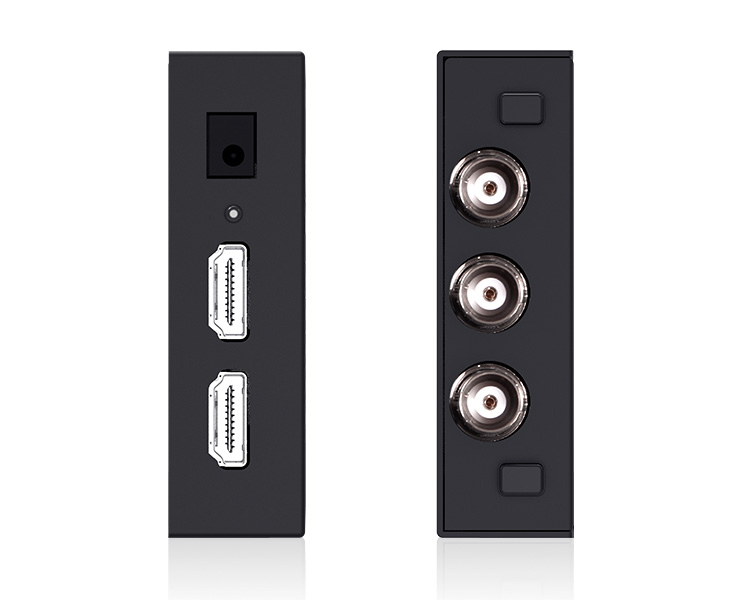

Full Size Connections Works with the cables you already have!

SEETEC Mini Converter feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, compatible with SD and HD-SDI equipment. Mini Converter SDI ⇌ HDMI Cross features One SDI input, Two SDI loop-out, One HDMI input, One HDMI output so you can connect it to multiple devices such as switchers, routers, monitors and more!

Easy Control Simple to set up

SDI ⇌ HDMI Cross Converter Provides LED indicators, to directive Signal Mode you choice. There’s even a printed switch diagram on converter, so you can setting quickly, only need to press mode up/ down button to switch indictor color.
Red：HDMI to HDMI, SDI to SDI
Green：SDI to HDMI, HDMI to SDI
Yellow：HDMI to SDI, HDMI to HDMI
Red/ Green Flashing：SDI to HDMI，SDI to SDI

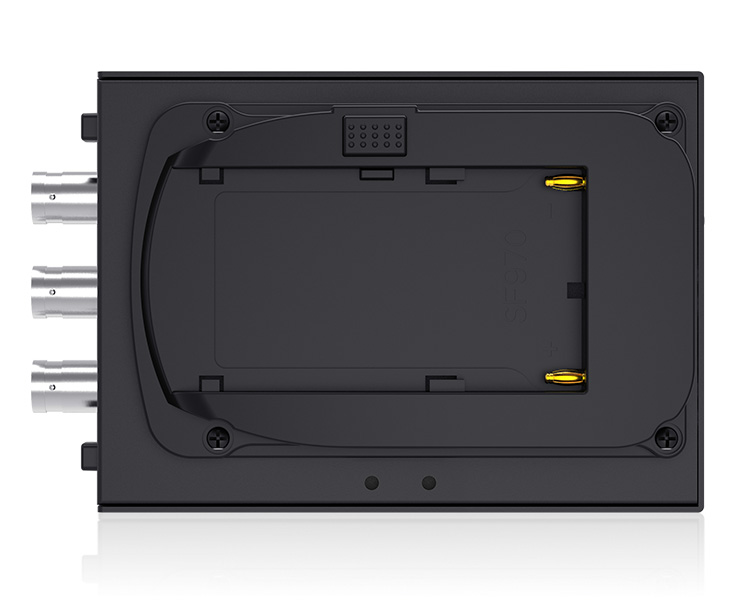

Flexible Double Power Supply System

The Mini Converter can be powered in two ways: with an DC adapter or lithium batteries. With F970 battery plate, lithium batteries are commonly used and are easy to find and replace, it’s the best choice for outdoor operation.

Simple, Compact and Rugged Built for any environment!

SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.

Flexible Installing

Standard “1/4-20”screw threads for flexible installing.

Application Show
