SEETEC WHD150

SEETEC WHD150 50m SDI/ HDMI Wireless Video Transmission System

Find other Studio Monitor here

Introduction

● Professional WHDI (MIMO/OFDM) technology
● Uncompressed 3G/HD/SD-SDI and HDMI
● 150m (LOS) transmission distance (max 200m)
● 5GHz ISM frequency band
● Multicast support
● Industrial metal case
● Support DC7V-36V voltage

Input

• 3G/HD/SD-SDI, HDMI

Output

• 3G/HD/SD-SDI, HDMI

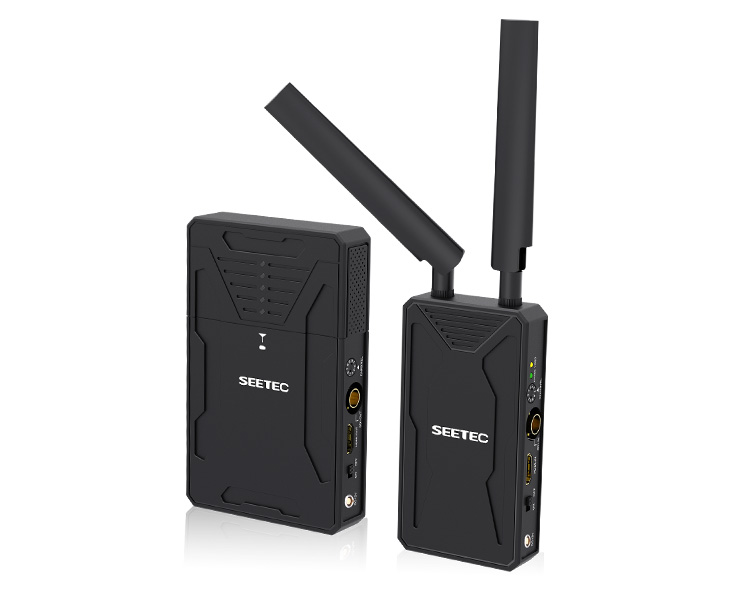

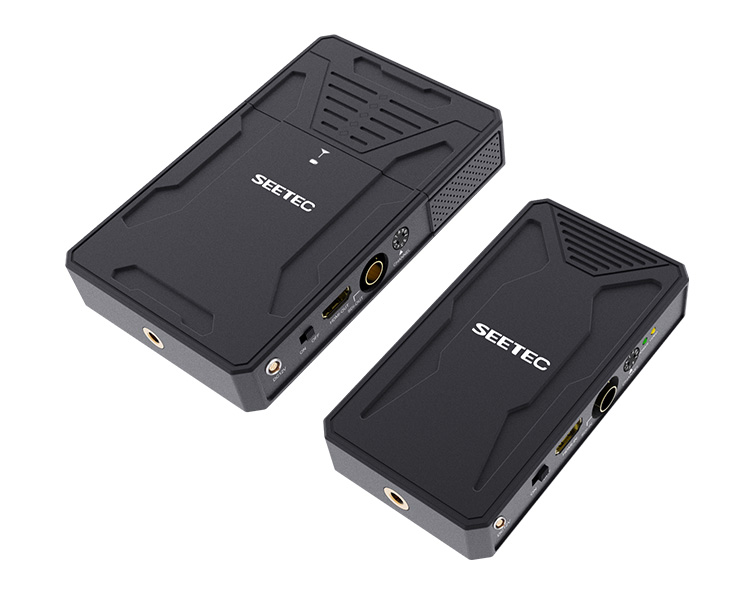

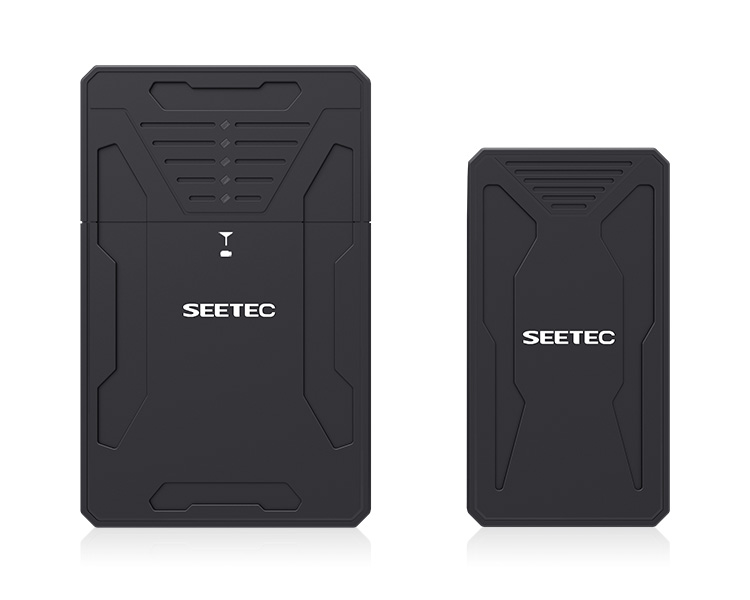

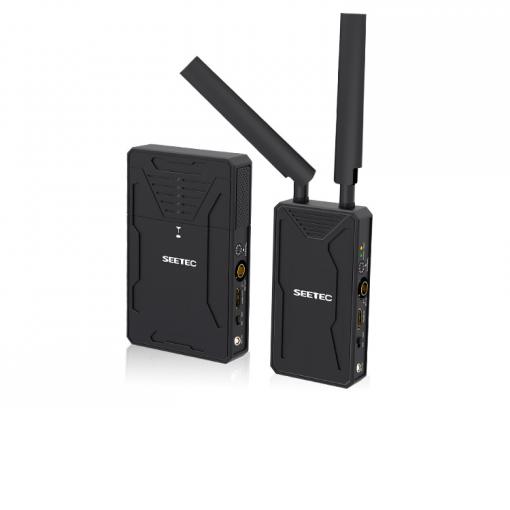

SEETEC WHD150 Wireless HD Transmission System

EETEC WHD150 is ideal for filmmakers to transition between scenes effortlessly, the director and photographer can exert their creativity, improve shooting efficiency, especially the special effects shots, especially the need wireless transmission.

WHDI Wireless Transmission System SDI and HDMI, 150 meters

WHD150 is the broadcast industry wireless system, includes a transmitter and receiver, with WHDI (OFDM) technology, supports uncompressed 3G/ HD/ SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m), and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.

High Quality HD 1080P Uncompressed SDI/HDMI, less than 1ms latency

The WHD150 3G-SDI/ HDMI Wireless Video Transmission System from SEETEC is able to transmit Full HD 1080p video at up to 150m line-of-sight with no quality loss and less than 1 ms latency. It can transmit even further; up to 200m line-of-sight (depending on conditions), but at this extended range some loss in quality may be experienced.

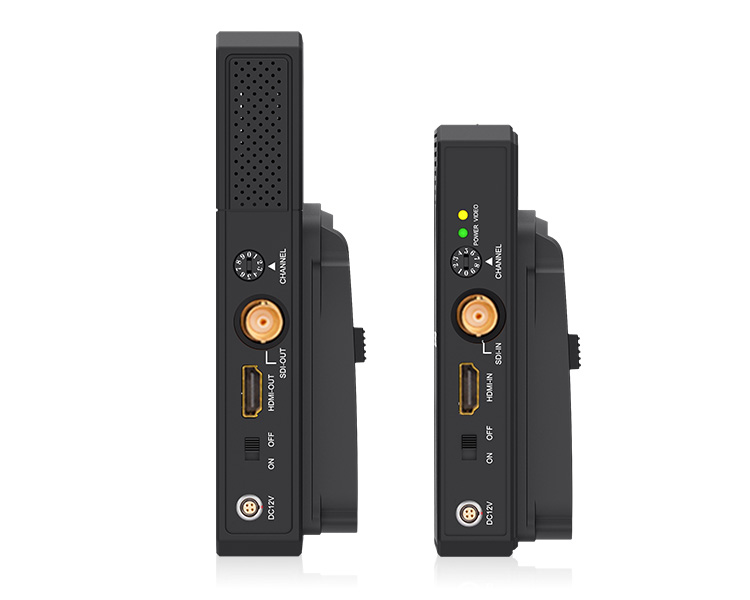

SDI/ HDMI Input and Output
