Viltrox VL-40B / VL-40T adjust the color temperature and brightness LED light

Function:

Adopting high quality lamps, Viltrox LED lights are designed to have high brightness, low energy consumption

and stable color temperature, emitting less heat. On its back there is FSK 2.4GHz wireless remote control

system which supports wireless remote control on single or multiple groups of LED lights and stepless adjustment

on brightness. The metal body has better heat dissipation, suitable for long time video light filling, interview and

product photography,etc.

Feature:

Metal Material- More attractive shape design owns to high quality metal material which has better heat

dissipation and durability.

Grouping&Channels-Channels( 1-19) and grouping(Group A-F, all groups) to better satisfy your needs

of photography light filling.

Wireless Remote Control-Support FSK 2.4GHz wireless remote control system; enable wireless remote

control to be set on single or multiple groups of LED light parameters.

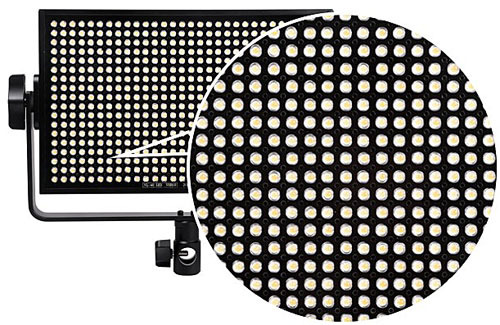

High quality lamp beads: Select pieces of high quality lamp beads which are environment-friendly,energy-

saving and long-lasting.

HD Viewing Screen-HD LCD Display to offer you more convenient and accurate operation.

Multiple Settings-Menu button on the back to help you switch On/Off or wirelessly remote control LED light parameters.

Stable Color Temperature-Close to daylight color temperature;range of variation is within 5600±300



Specification:

Model	VL-40B	VL-40T
Color temperature	5600K ±300 ( Fixed )	3300K-5600K ( can be adjusted )
Brightness	20%~100% ( adjustable )	20%~100% ( adjustable )
Max. Brightness	4800 LM	4400 LM
Max. illuminance	2800Lux /1m	2600Lux /1m
Lamp beads	5600K :540 pcs	3300K :270 pcs+5600K :270 pcs
Power(max.)	40W
Continue light time	Approx.2h ( 100%Full, NP-F960 )
Group	A / B / C / D / E / F
Channel	1~19
Color rendering index	≥ 95 (RA)
DC adapter	Input Voltage: AC110-240V/50/60Hz  3 m cable Output Voltage: DC18V/3.5A,  round hole straight head Ф5.5; 2.5mm internal diameter; 2 m cable; magnetic ring included
Lithium battery	Li-battery  F960 / F970 series
Dimension	317mm×249mm ×48mm
Weight	Approx. 1.2kg  ( include Light Barrier )
Standard  Accessory	LED light  *1    VL-500RT  Remote controller  *1      DC adapter  *1 Manual  *1   Warranty card  *1
Optional Accessory	Lithium battery *2     DC 8.4V Lithium battery Charger  *1

Remote  controller  specification:

Model	VL-500RT remote controller
Frequency	FSK 2.4GHZ wireless remote system
Control distance (in open air)	20 meters
Wireless remote group	Single group ( A/B/C/D/E/F ), Full group( ABCDEF )
Channel	19
Stand-by time	2.5 minutes without operation, it will off automatic
Environment temperature	-10~50°
Power	R03 Size AAA 1.5V battery
Dimension	141mm×55mm×18mm
Weight	Approx. 100g ( not include battery )

Description

---

Adopting high quality lamps low energy consumption, less heat and stable color temperature

---

High quality metal material which has better heat dissipation and durability.

---

High brightness LED’s are used which are also energy saving, high efficiency
